ZIMO MS581N18G MS Sound Decoder - Next18

Product no.: MS581N18G

ZIMO MS581N18G variant of the MS581N18, without capacitor MS sound decoder - Next18



Technical details

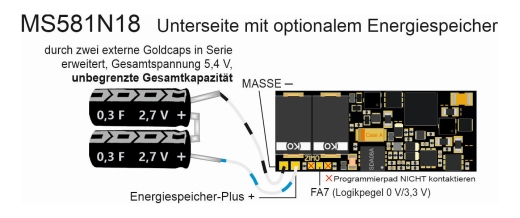

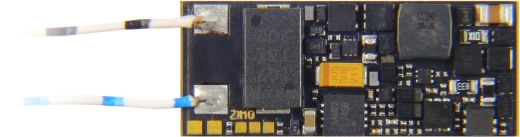

Variant of the MS581N18, without additional internal energy storage (1 large tantalum), with 2 wires for connecting two external 0.3F/2.7V gold caps (4x12mm, included)
Note: Wired decoders (also ...R and ...F types) are each supplied with an electrolytic capacitor from 680 to 1000μF free of charge. This is used to test the energy storage connection; at this capacity the effect is already noticeable. For real use, much larger capacities, e.g. GoldCaps, are recommended.

The decoder is delivered with the sound collection ZSP01006 with steam locomotive sounds for DB BR50 / BR78 / BR03.10 and diesel locomotive sounds for BR211
If you would like to have a different sound project installed, please order the desired sound project (free or coded) separately (see "Configuration" or product recommendations)

RailCom is a registered trademark of Lenz Elektronik GmbH, Gießen
mfx is a registered trademark of Gebr. Märklin & Cie. GmbH, Göppingen






Characteristics:

Manufacturer:	ZIMO
Item number:	MS581N18G
number of pieces:	piece
EAN:	9009606581105
Product Type:	MS Sound Decoder
track:	neutral
Digital decoder:	Yes
Connections::	Next18
length:	24.9mm
Width:	10mm
Height:	4mm
Operating modes:	AC, DC, DCC, MM, mfx
Connection technology:	Next18
Continuous current:	0.8A (1.5A peak)
Current motor output duration:	0.8A (1.5A peak)
Function output (total):	6 (+ 3 logic levels)
Current limit. Fu-Off:	0.6A
Logic level outputs:	3
LED outputs:	2
Servo outputs:	2
Servo control line:	No (ext. 5 V required)
SUSI:	Yes
Dir. Energy Saving Connection:	yes external 5 V tantalums
Low voltage for Fu output:	5 V (max. 50 mA on solder pad)
Switching inputs:	(2 alternative applications logic levels
Speaker output:	1 (3 Watt/4 - 8 Ohm on MTC connector)
Audio performance:	3 watts/4 - 8 ohms
Sound memory:	128 Mbps
Age recommendation:	14 years and older
WEEE No.:	EN 19640759

• Zimo Sound: without sound project
• Zimo Sound: ZIMO "free" sound project (+9,00 €)
• Zimo Sound: "coded" sound project (+18,00 €)
• Zimo Sound: "coded" sound project (LGB) (+28,00 €)
