ZIMO MS450P16 MS Sound Decoder - PluX16

Product no.: MS450P16

ZIMO MS450P16 variant of the MS450P22 with 16 pins MS sound decoder - PluX16



Technical details

Variant of the MS450P22 with 16 pins, direct connection of energy storage 15 V (unlimited capacity) on PluX pin header, no wires
Note: Wired decoders (also ...R and ...F types) are each supplied with a free electrolytic capacitor of 680 to 1000μF. This is used to test the energy storage connection; at this capacity the effect is already noticeable. For real use, much larger capacities, e.g. GoldCaps, are recommended.

MS-Sound decoder MS450P16 with 16-bit sound from ZIMO with 16 V energy storage connection

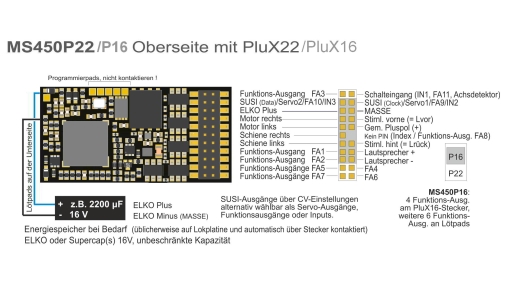

PluX 16 interface according to NEM658 on circuit board
Dimensions 30 x 15 x 4 mm
Motor/total current: 1.2 A (2.5 A peak)
Audio power: 3 W
10 function outputs (6 of which are on solder pads), 2 logic level and servo outputs
Equipped with all ZIMO features: DCC, mfx, MM, SUSI, RailCom, NMRA and ZIMO function mapping, etc.
mfx with automatic registration at the digital center
Loudspeakers from 4 to 8 ohms can be used.

Supplied with the decoder with the sound collection ZSP01006 with steam locomotive sounds for DB BR50 / BR78 / BR03.10 and diesel locomotive sounds for BR211
If you would like to have a different sound project installed, please order the desired sound project (free or coded) separately (see "Configuration" or product recommendations)

RailCom is a registered trademark of Lenz Elektronik GmbH, Gießen
mfx is a registered trademark of Gebr. Märklin & Cie. GmbH, Göppingen






Characteristics:

Manufacturer:	ZIMO
Item number:	MS450P16
number of pieces:	piece
EAN:	9009606450166
Product Type:	MS Sound Decoder
track:	neutral
Digital decoder:	Yes
Connections::	PluX16
length:	30mm
Width:	15mm
Height:	4mm
Operating modes:	AC, DC, DCC, MM, mfx
Connection technology:	PluX16
Continuous current:	1.2 A (2.5 A peak)
Current motor output duration:	1.2 A (2.5 A peak)
Function output (total):	10 (+ 2 logic levels)
Current limit. Fu-Off:	0.8A
Logic level outputs:	2
LED outputs:	2
Servo outputs:	2
Servo control line:	No (ext. 5 V required)
SUSI:	Yes
Dir. Energy Saving Connection:	yes on the PluX connector
Low voltage for Fu output:	5 V possible
Switching inputs:	1
Speaker output:	1 (3 Watt/4 - 8 Ohm on MTC connector)
Audio performance:	3 watts/4 - 8 ohms
Sound memory:	128 Mbps
Age recommendation:	14 years and older
WEEE No.:	EN 19640759

• Zimo Sound: without sound project
• Zimo Sound: ZIMO "free" sound project (+9,00 €)
• Zimo Sound: "coded" sound project (+18,00 €)
• Zimo Sound: "coded" sound project (LGB) (+28,00 €)
