ZIMO MX645 MX-Sound Decoder - Wires

Product no.: MX645

ZIMO MX645 - Wires - DCC, MM, DC, AC MX Sound Decoder - Wires



Technical details

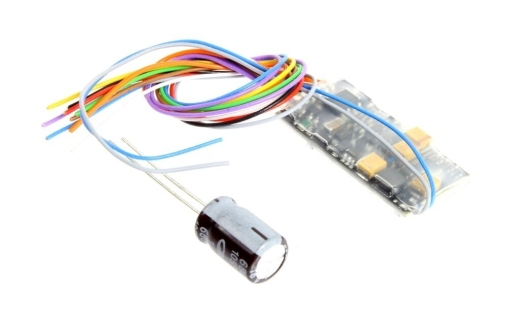

Sound decoder MX645 from ZIMO with 16 V energy storage connection
with 13 connecting wires, decoder in shrink tubing

Dimensions 30 x 15 x 4 mm
Motor/total current: 1.2 A (2.5 A peak)
Audio power: 3 W
10 function outputs (4 with wires, 6 on solder pads), 2 logic level and servo outputs, equipped with all ZIMO features: DCC, MM, SUSI, RailCom, NMRA and ZIMO function mapping, etc.

Loudspeakers from 4 to 8 ohms can be used.
The decoder is delivered with the sound project ZSP00064 (European Steam / Diesel Collection). The description can be found above with the pictures.
If you would like to have a different sound project installed, please order the desired sound project (Free or Coded) separately (see "Configuration" or product recommendations)








Characteristics:

Manufacturer:	ZIMO
Item number:	MX645
number of pieces:	piece
EAN:	9009606645906
Product Type:	MX Sound Decoder
track:	neutral
interface:	Wires
Digital decoder:	Yes
Connections::	Wires
length:	30mm
Width:	15mm
Height:	4mm
Operating modes:	DCC, MM, DC, AC
Connection technology:	Wires
Continuous current:	1.2A
Current motor output duration:	2.5A
Function output (total):	10 (9)
Current limit. Fu-Off:	in total 0.8 A
Logic level outputs:	2 alternative to SUSI
LED outputs:	2 alternative to SUSI
Servo outputs:	2 alternative to SUSI
SUSI:	Yes
Dir. Energy Saving Connection:	Yes (16V)
Low voltage for Fu output:	No
Switching inputs:	1
Speaker output:	4 to 8 ohms
Audio performance:	3W
Sound memory:	32 Mbps
Age recommendation:	14 years and older
WEEE No.:	EN 19640759

• Zimo Sound: without sound project
• Zimo Sound: ZIMO "free" sound project (+9,00 €)
• Zimo Sound: "coded" sound project (+18,00 €)
• Zimo Sound: "coded" sound project (LGB) (+28,00 €)
