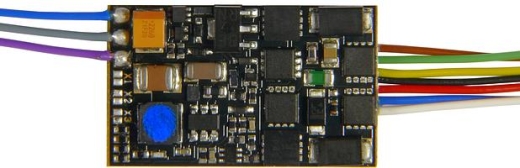

ZIMO MX675V functional decoder - wires

Product no.: MX675V

ZIMO MX675V High Performance Function Decoder Function decoder - wires



Technical details

High-performance function decoder - 25 x 15 x 4 mm - 1.8 A - 10 FA 16V energy storage connection, variable low-voltage output

Note: Each function decoder has a blue marking point to distinguish it from a driving decoder!
Function decoder MX675V from ZIMO with 16V energy storage connection
with 10 cables

Dimensions: 25 x 15 x 4 mm
Total current: 1.8 A
12 function outputs (4 on wires, 8 on solder pads), 2 servo outputs, programmable second address, DCC and MM, SUSI, RailCom, NMRA and ZIMO function mapping, etc.
with adjustable low voltage (CV#264)

Function decoders do not have a motor output stage, but have special functions for controlling cars. All ZIMO function decoders can be given a second address, with which this decoder can be controlled at another address. If this second address matches the address of the towing vehicle, the locomotive and the control car can be given commands at the same time using this function decoder.






Characteristics:

Manufacturer:	ZIMO
Item number:	MX675V
number of pieces:	piece
EAN:	9009606675958
Product Type:	Function decoder
track:	neutral
Digital decoder:	Yes
Connections::	Wires
length:	25mm
Width:	15mm
Height:	4mm
Operating modes:	DCC, MM, DC, AC
Connection technology:	10 stranded wires
Continuous current:	1.8A
Function output (total):	12
Current limit. Fu-Off:	in total 0.8 A
Logic level outputs:	2, old. to SUSI
Servo outputs:	2, old. to SUSI
SUSI:	Yes
Dir. Energy Saving Connection:	yes (16V)
Low voltage for Fu output:	adjustable
Age recommendation:	14 years and older
WEEE No.:	EN 19640759
